Description

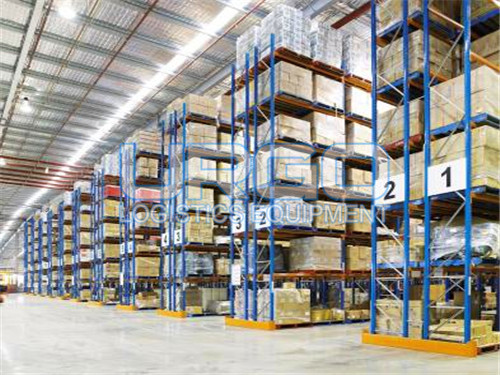

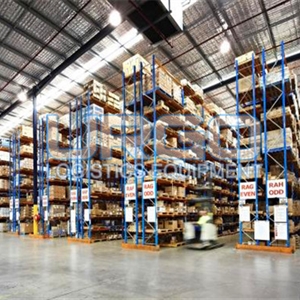

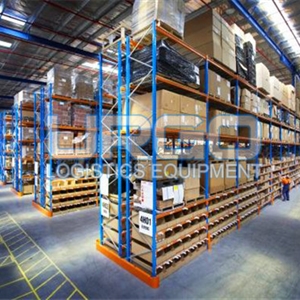

   Urgo Heavy Weight Pallet Rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It has the advantage of allowing storage or retrieval of each pallet without moving others, as every pallet is individually accessible.Heavy Weight Pallet Rack System by Urgo provide a broad range of flexibility for any heavy duty storage needs. The wide selection of components allow for an infinite variety of sizes to accommodate the most specific pallets, wire mesh box pallets, etc. Stocking vertically and horizontally maximizes available space without damaging inventory, while having the ability to access each individual load. Allows you to provide improved service to your customers.  Urgo Heavy Weight Pallet Rack aisles and components can be sized to suit existing forklift trucks. Only two basic components beams and frames, are required in a variety of sizes according to load requirements of up to 100,000 lbs.
Urgo Heavy Weight Pallet Rack installs quickly and adjusts easily to your specific needs.
1. 100% accessibility to individual pallets
2. Easy picking lower levels
3. Good storage density
4. Easily installed and repositioned
5. No special lift trucks required
Applications: warehouse & logistics, food/drug distribution, petroleum/chemical plants, automotive distributors, big box retail hardware and home improvement stores.
We according to the different requirements of bearing, in accordance with the column section size can be divided into:                            type 80, type 85, type 90, type 100, type 120 and type 140.
According to the structure and cross section of the beam height can be divided into:
Rectangular tube beam: 60 / 80 / 100 / 120mm
C shape tube beam: 80 / 100 / 120 / 140mm
Box beam: 80 / 90 / 100 / 110 / 120 / 140 / 160 / 180mm
Corbel box beam: 80 / 90 / 100 / 110 / 120 / 140 / 160mm
P type box Beam: 76.2 / 80 / 101.6 / 110 / 114.3mm
Urgo  heavy weight pallet rack conventional accessories include: cross beam, back brake  beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard barl etc.
